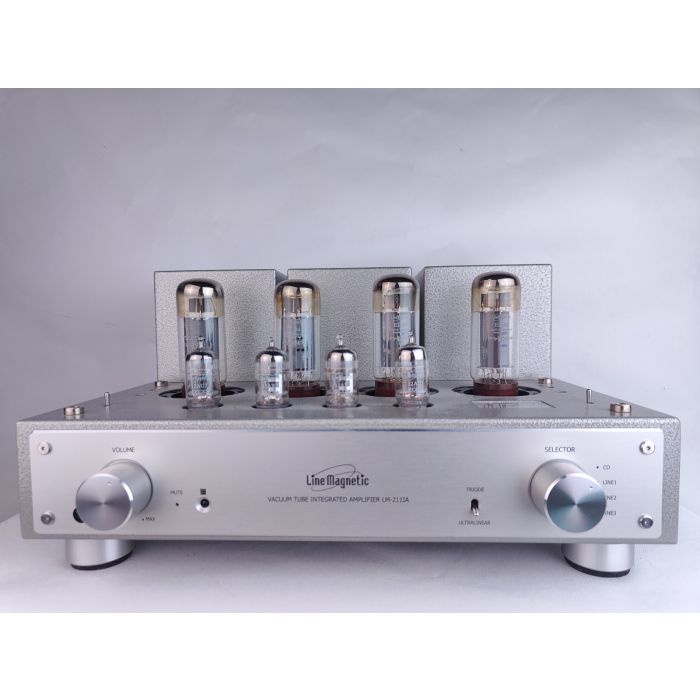

Beg. Line Magnetic LM-211IA

Product features

- Input stage: 2x 12AX7 et 2x 12AU7
- Power stage: 4x EL34
- Hand-made construction with the finest point-to-point wiring
- Bias control is accessible on top of the amplifier panel with true ampere meter
- Analog Inputs: 4 line inputs
- Load impedance: 4/8Ω
- SoftStart and time-delay circuit. (30 seconds)
- Specially designed EI transformer for power supply
- Two EI output transformers with wide bandwidth are applied
- ALPS volume control and Realcap capacitors are applied
- Metal and removable tube guard cage
- Infrared Remote control

Specifications

Power output:
15W + 15W RMS Triode mode
32W + 32W RMS Ultralinear mode

Working conditions:
Temperature: 0°C to 40°C
Moisture: 20% to 80%

Frequency response (±1,5dB): 10Hz-50KHz

Storage conditions:
Temperature: -20°C to 70°C
Moisture: 20% to 90%

Input sensitivity: 200mV

THD: 1%

S/N ratio: 88dB

Dimensions (W x H x D): 376 x 191,5 x 345 mm

Input impedance: 100kΩ

Output impedance: 4Ω, 8Ω

Tubes: 2x 12AX7, 2x 12AU7, 4x EL34

Net weight: 19,6kg

Power requirements: 230V ±5% (50Hz)

Power consumption: 230W
