Audio-Technica AT-OC9XSL

Flaggskeppsmodellen i nya OC9X-serien Hos Audio-Technica. En riktigt grym Dual Moving Coil pickup (MC).

Tillgänglighet: I lager
SKU

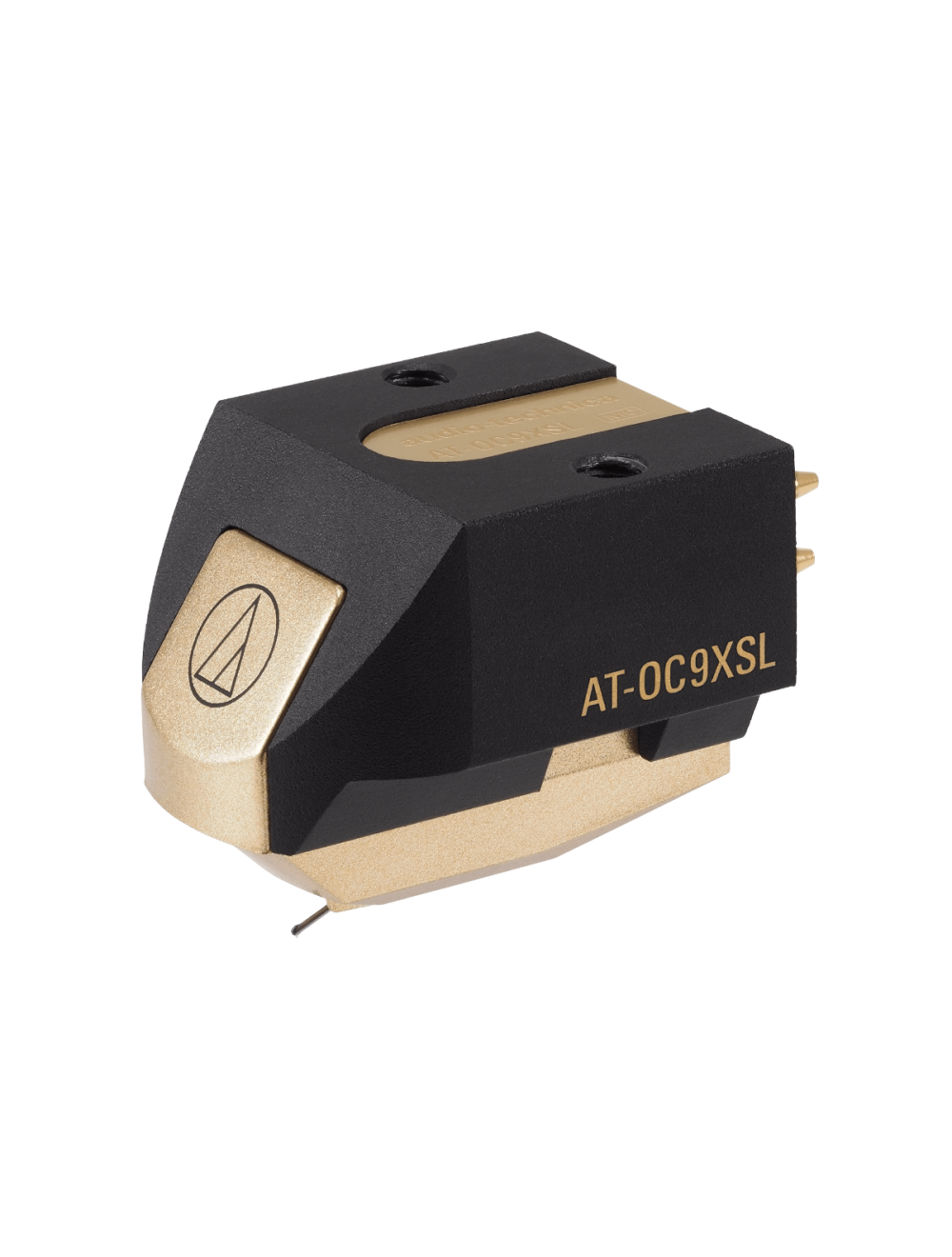

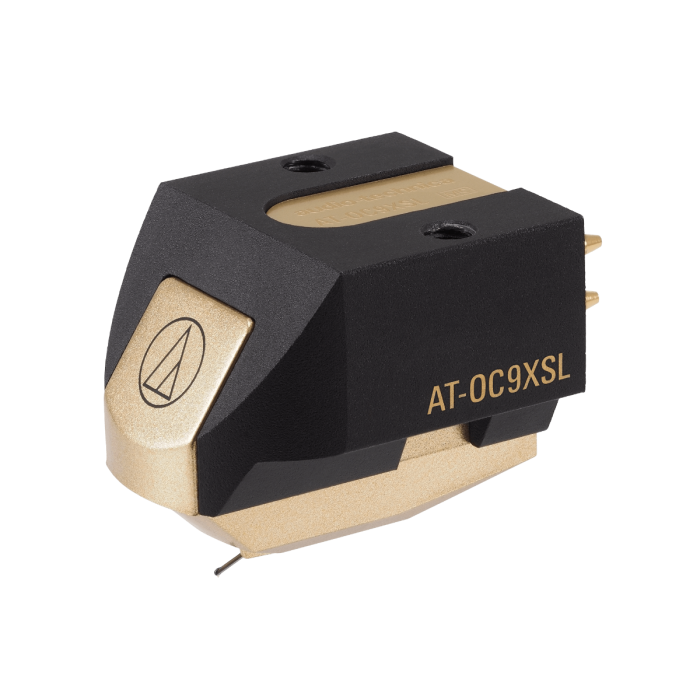

Audio-Technica AT-OC9XSL
9 390,00 kr
Köp nu, betala med
Betala 471,00 kr/månad i 24 månader (7.96% ränta).
Uppläggningsavgift: 395,00 kr
Administrationsavgift per månad: 45,00 kr
För 24 månader blir det totalt 11 692,00 kr.

The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications

Cartridge & Stylus
Frequency Response 20 - 50,000 Hz
Channel Separation 28 dB (1 kHz)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction Nude rectangular shank
Recommended Load Impedance Min 100 Ohms
Coil Impedance 12 Ohms (1 kHz)
DC Resistance 12 Ohms
Coil Inductance 25 μH (1 kHz)
Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 0.5 dB (1 kHz)
Stylus Shape Special Line Contact
Cantilever 0.28 mm Ø nude boron
Static Compliance 22 x 10 – 6 cm / dyne
Dynamic Compliance 18 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centers / Threaded inserts
Cartridge Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included 1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material Aluminium
Model AT-OC9XSL
Stylus Size 1.5 x 0.28 mil
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
Mer information
SKU Audio-Technica AT-OC9XSL
Märke Audio-Technica
