Audio-Technica AT-OC9XSH

En Dual Moving Coil MC-pickup med Shibataslipad nål detta gör att den lirar riktigt bra.

Tillgänglighet: I lager
SKU
Audio-Technica AT-OC9XSH
8 190,00 kr
Köp nu, betala med
Betala 416,00 kr/månad i 24 månader (7.96% ränta).
Uppläggningsavgift: 395,00 kr
Administrationsavgift per månad: 45,00 kr
För 24 månader blir det totalt 10 389,00 kr.

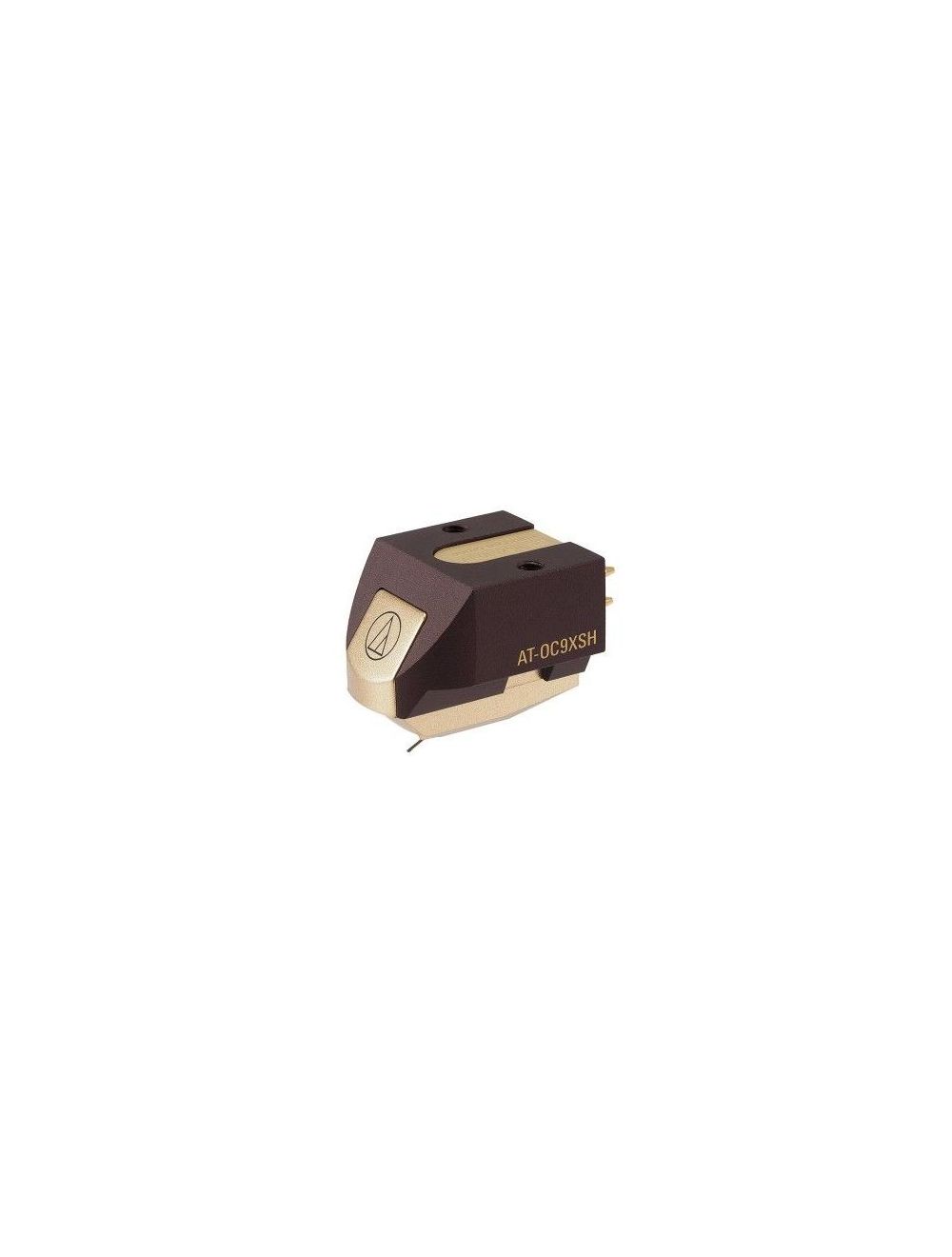

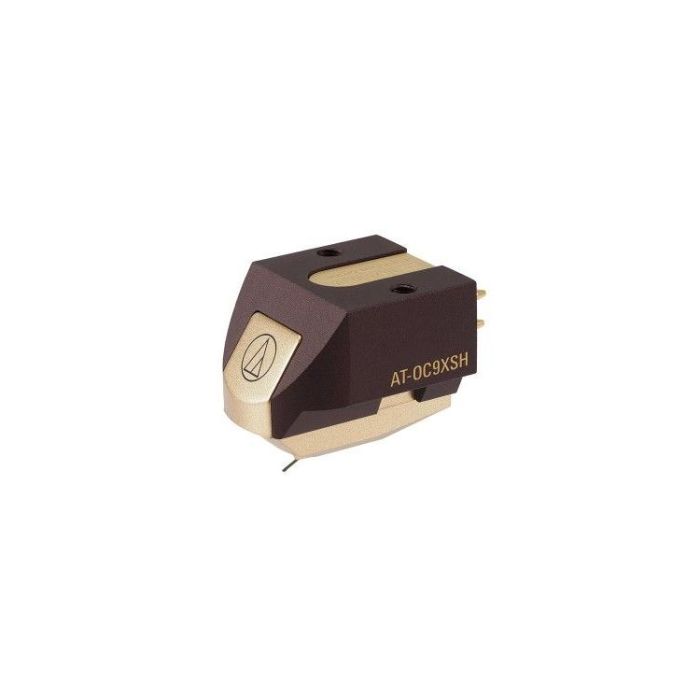

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications

Cartridge & Stylus
Frequency Response 20 - 47,000 Hz
Channel Separation 27 dB (1 kHz)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction Nude square shank
Recommended Load Impedance Min 100 Ohms
Coil Impedance 12 Ohms (1 kHz)
DC Resistance 12 Ohms
Coil Inductance 25 μH (1 kHz)
Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 1.0 dB (1 kHz)
Stylus Shape Shibata
Cantilever 0.28 mm Ø nude boron
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 16 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centers / Threaded inserts
Cartridge Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included 1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material Aluminium
Model AT-OC9XSH
Stylus Size 2.7 x 0.26 mil
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
Mer information
SKU Audio-Technica AT-OC9XSH
Märke Audio-Technica
