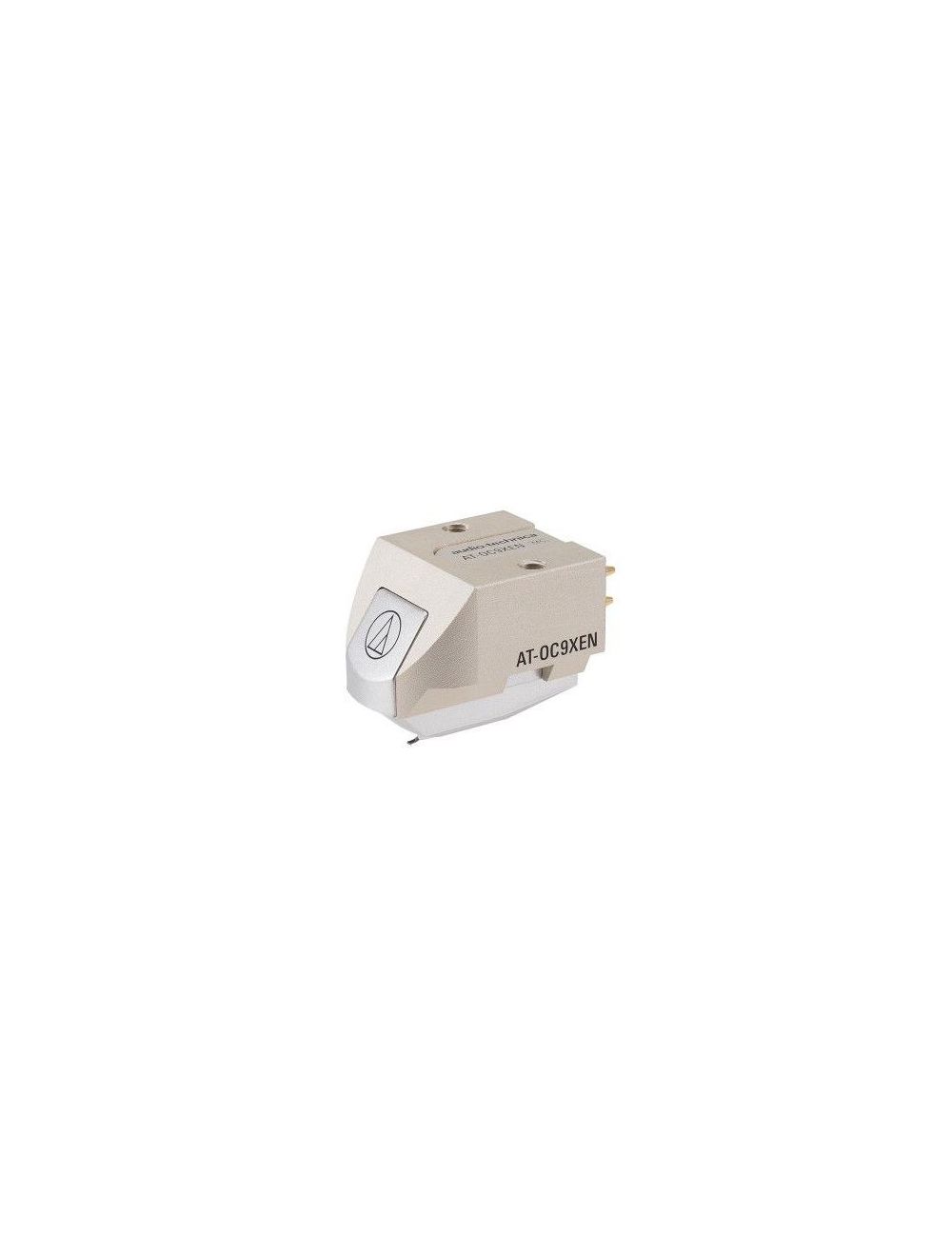

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation
The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required
Features low mass nude elliptical stylus and aluminum cantilever
A neodymium magnet and pure iron yoke provide increased magnetic energy
Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
Pure copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
Cartridge & Stylus
Frequency Response
20-30,000 Hz
Channel Separation
25 dB (1 kHz)
Vertical Tracking Angle
20°
Vertical Tracking Force
1.8-2.2 g (2.0 g standard)
Stylus Construction
Nude square shank
Recommended Load Impedance
Min. 100 ohms (when head amplifier is connected)
Coil Impedance
12 ohms (1 kHz)
DC Resistance
12 ohms
Coil Inductance
25 mH (1 kHz)
Output Voltage
0.35 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance
1.5 dB (1 kHz)
Stylus Shape
Elliptical nude
Cantilever
Aluminum pipe
Static Compliance
20 x 10-6 cm/dyne
Dynamic Compliance
9 x 10-6 cm/dyne (100 Hz)
Mounting
Half-inch
Cartridge Weight
7.6 g
Dimensions
17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D
Accessories Included
Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
Body Material
Aluminum
Model
AT-OC9XEN
Mounting Feature
Half-inch mount
Stylus Curvature Radius
0.3 x 0.7 mil
Stylus Size
Nude square shank
Terminal Pins
Brass
Type
Dual Moving Coil
Weight
7.6 g (0.3 oz)
Wire Used for Coil
PCOCC
Notes
Mounting Feature: Threaded body
Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
