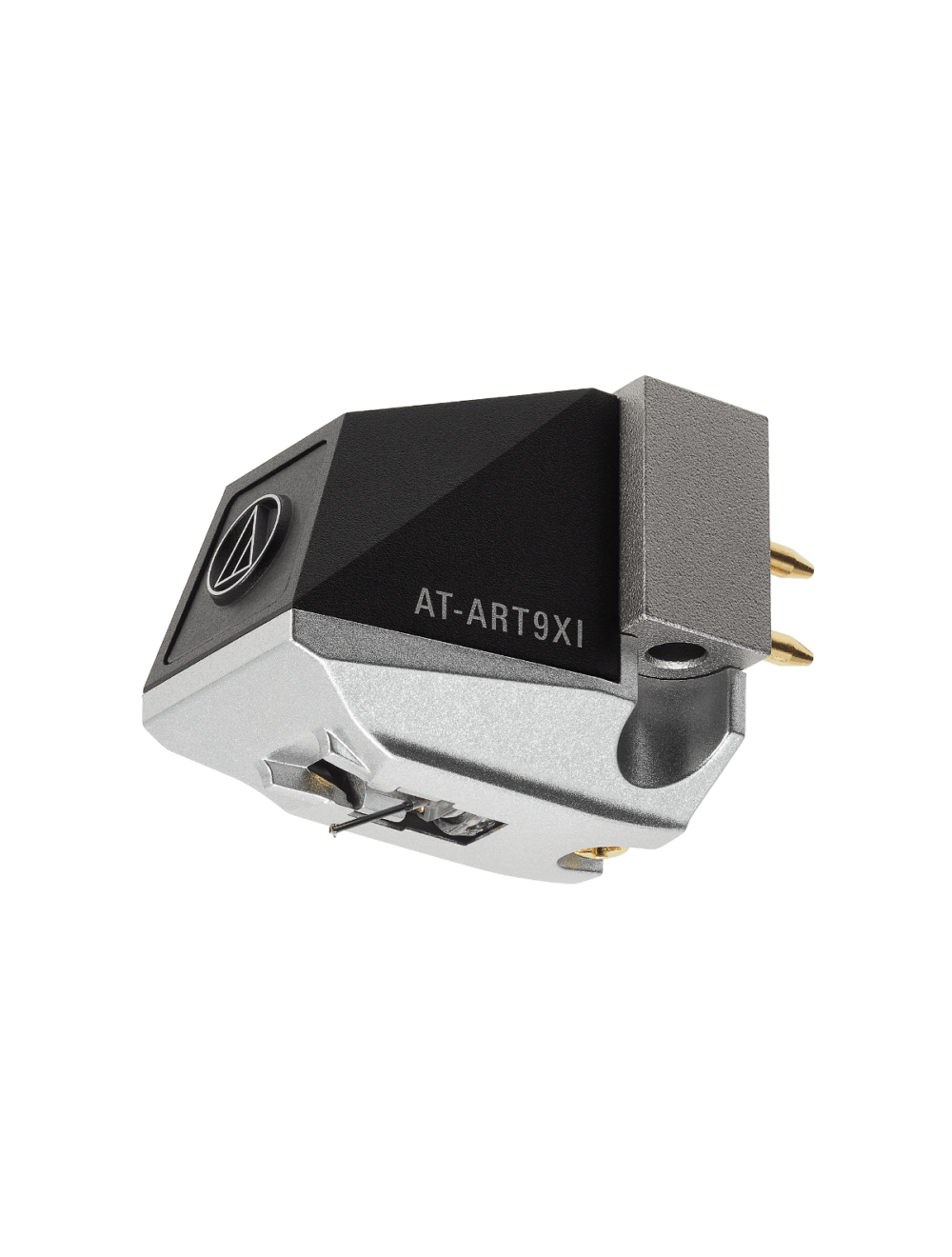

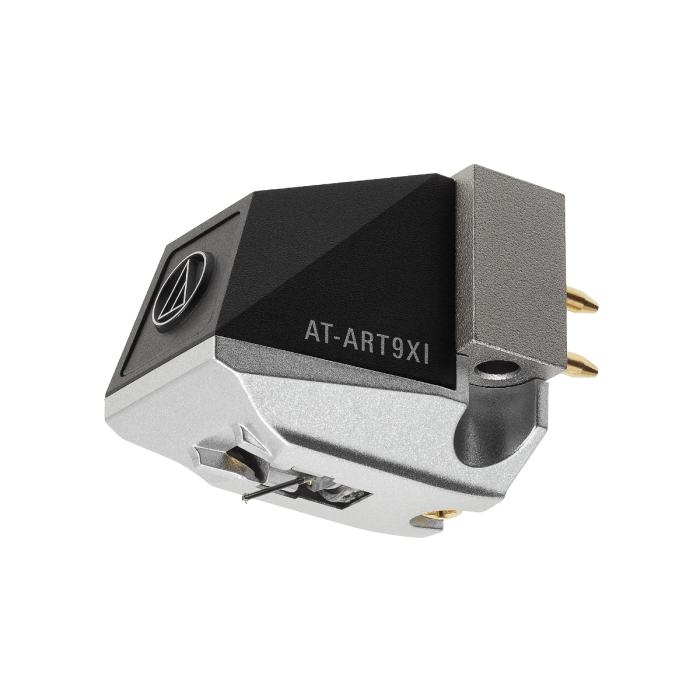

Audio-Technica AT-ART9XI

Bli först med att recensera denna produkt

Med en speciell line contact nål på en 0,28 mm diameter solid borkonsol. En av Audiotechnicas absolut bästa MC pickuper.

Tillgänglighet: I lager

18 250,00 kr

Köp nu, betala med

Läs mer

Betala 872,00 kr/månad i 24 månader (7.96% ränta).

Uppläggningsavgift: 395,00 kr

Administrationsavgift per månad: 45,00 kr

För 24 månader blir det totalt 21 325,00 kr.

Meddela mig när priset sänks

Detaljer

Audio-Technica’s flagship magnetic core moving coil cartridge

Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

Neodymium magnet and permendur yoke significantly increase magnetic energy

Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)

PCOCC coils ensure high-fidelity transmission

Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability

Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Specifications

Cartridge & Stylus
Frequency Response	20-50,000 Hz
Channel Separation	30 (dB at 1 kHz)
Vertical Tracking Angle	20°
Vertical Tracking Force	1.6-2.0 g (1.8 g standard)
Stylus Construction	Nude
Recommended Load Impedance	Min. 100 ohms (when head amplifier connected)
Coil Impedance	12 ohms (1 kHz)
DC Resistance	12 ohms
Coil Inductance	25 µH (1 kHz)
Output Voltage	0.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance	0.5 dB (1 kHz)
Stylus Shape	Special line contact
Cantilever	0.28 mm diameter solid boron
Static Compliance	25 x 10-6 cm/dyne
Dynamic Compliance	15 x 10-6 cm/dyne (100 Hz)
Mounting	Half-inch
Cartridge Weight	8.5 g (0.30 oz)
Dimensions	17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
Accessories Included	Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
Threaded Hole	M2.6 x 2
Notes	Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.

SKU	Audio-Technica AT-ART9XI
Märke	Audio-Technica
Weight	1.000000
