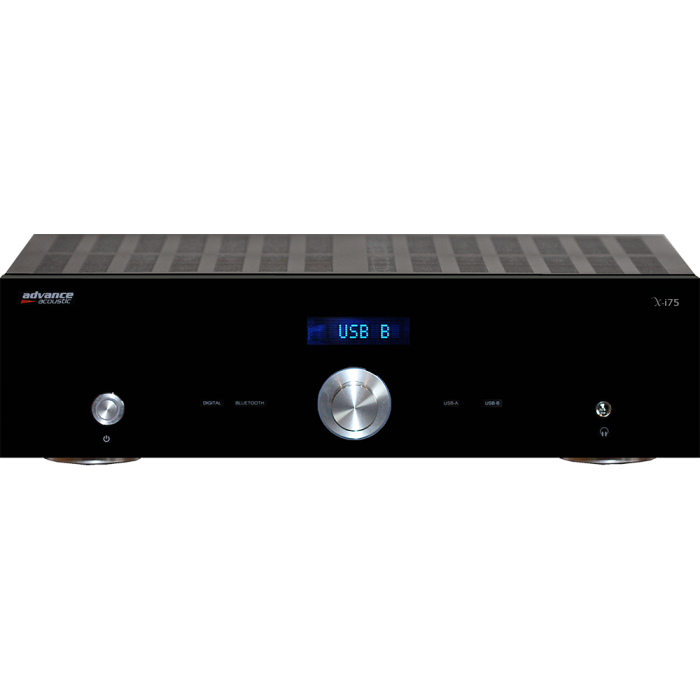

Advance Acoustic X-i75

SPECIFICATIONS

Power 8 Ω : 2x75W RMS
Power 4 Ω : 2x110W RMS
Frequency response (-3dB) 10Hz-35kHz
Tone Control +/- 10 dB
Distorsion < 0,1%
Signal/Noise ratio > 90 dB
Channel Separation > 70 dB
Input Impedance 47KΩ
Phono Input Impedance 47KΩ
Digital audio Converter AK4113 low jitter
Converter 24bit-192kHz
USB B Converter Wolfson WM8740
X-MOS Asynchrone
In Level (CD/AUX...) < 300mV
In Level Amplifier < 1,1V
Phono MM Input Level 2,5mV
Bluetooth Module APTX – AAC (Optional module : X-FTB01)
AC Input 115-230V
Power Consumption : 300W (X-i75)
Transformer (1)
Dimensions (cm) H12 cm x W.43 cm x D.32 cm
Net Weight : 8,6 kg (X-i75)

Analog Inputs :

1 phono MM input
1 CD input
1 Tuner input
4 Auxiliaries inputs
1 PC2 analog input
1 Record output
1 output for Subwoofer
Amplifier –Preamplifier can be disconnected

Digital Inputs :

2 Coaxial inputs
1 Optical inputs
1 Asynchronous USB B X-MOS input
1 USB A input for USB Key with MP3 files
1 module Bluetooth input 24 bits x 48 kHz (Optional module X-FTB01)

Outputs :

1 Paire of loudspeakers
1 headphones plug
1 5 Volts output for WTX 500

Adjustment :

- Volume
- Balance
- Bass
- Trebble
- Bypass
-Hi Bias switch
