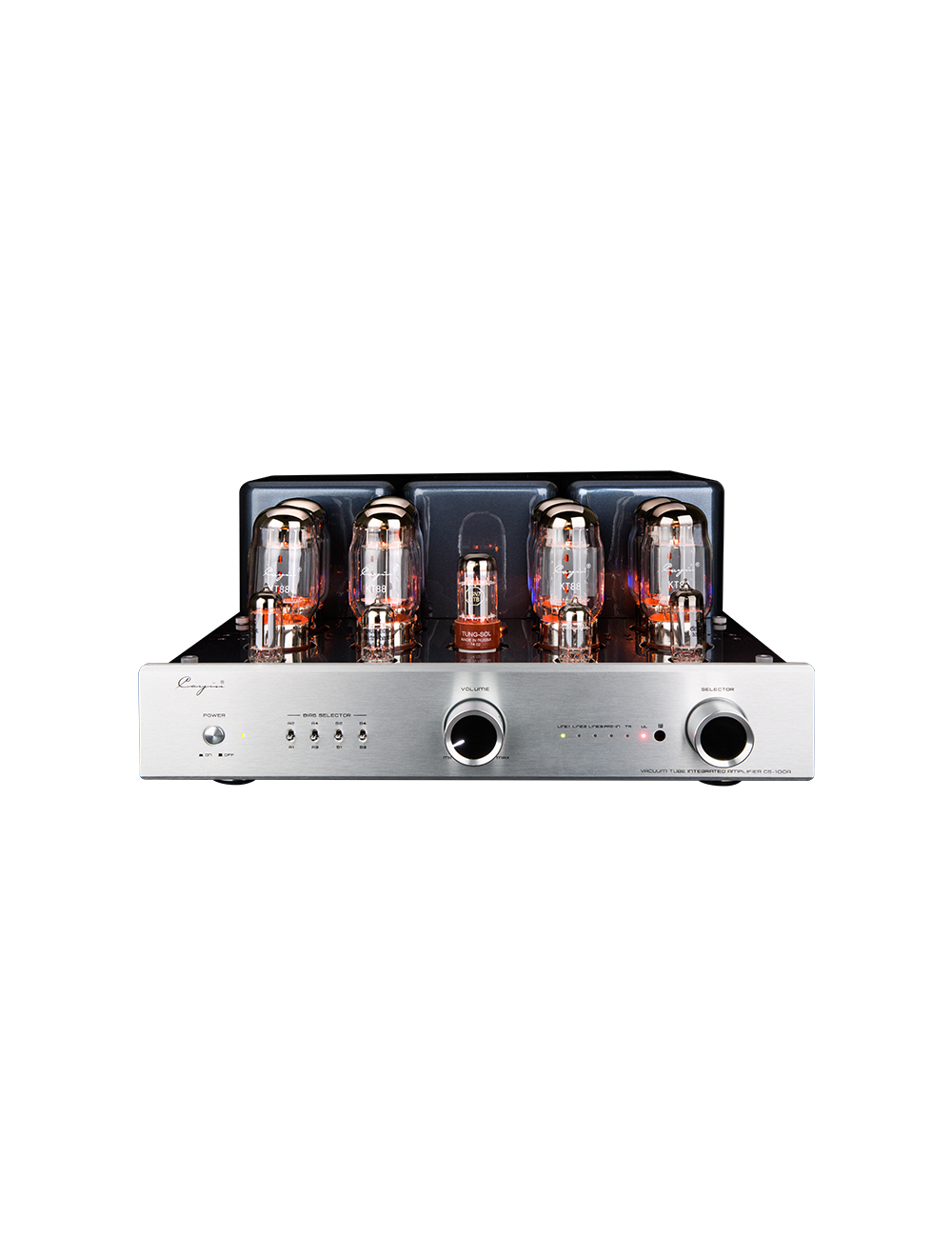

Cayin CS-100A EL34
- The new dual-mode Cayin Audio CS-100A tube amplifier is rated at 80 watts per channel in Class AB Ultra-linear mode and 50-watts per channel in triode mode. With an on-board bias meter, the integrated amplifier can run either KT-88 or EL family tubes and uses silver internal wiring. The CS-100A incorporates a 6SN7 tube for voltage amplification, 12AU7EH for phase inversion/voltage amplification and 12BH7EH for voltage amplification and driver stages, with KT-88 or EL-34 output valves. Soft-Start circuitry protects the amplifier and extends the life of internal components and tubes. A high grade Alps volume control, audio-grade capacitors, carbon film resistors, toroidal transformer for power supply and wide-bandwidth EI output transformers are all standard.
Från
34 990,00 kr
Tillgänglighet:
I Lager
SKU
Cayin CS-100A EL34
|
SPECIFICATION |
|||
|
Model |
CS-100A |
Power Output |
50W+50W (Triode) 80W+80W (Ultra-linear) |
|
Frequency Response |
8Hz～75kHz (-3dB) |
THD |
1%(1kHz) |
|
Power Supply |
Custom made Torroidal |
Power Consumption |
<480w |
|
S/N Ratio |
92dB |
Input Sensitivity |
450mV (Integrated) |
|
Dimension |
420 × 200 × 394 mm(W×D×H) |
Net Weight |
30kg |
|
Output Impedance |
4Ω，8Ω |
Input Impedance |
100KΩ |
|
Tube |
1 x 6SN7, 2 x 12BH7EH, 2 x 12AU7EH, 8 x KT88/EL34 |
Input Terminals |
Line 1, Line 2, Line 3, Pre-In |
| SKU | Cayin CS-100A EL34 |
|---|---|
| Märke | Cayin |
