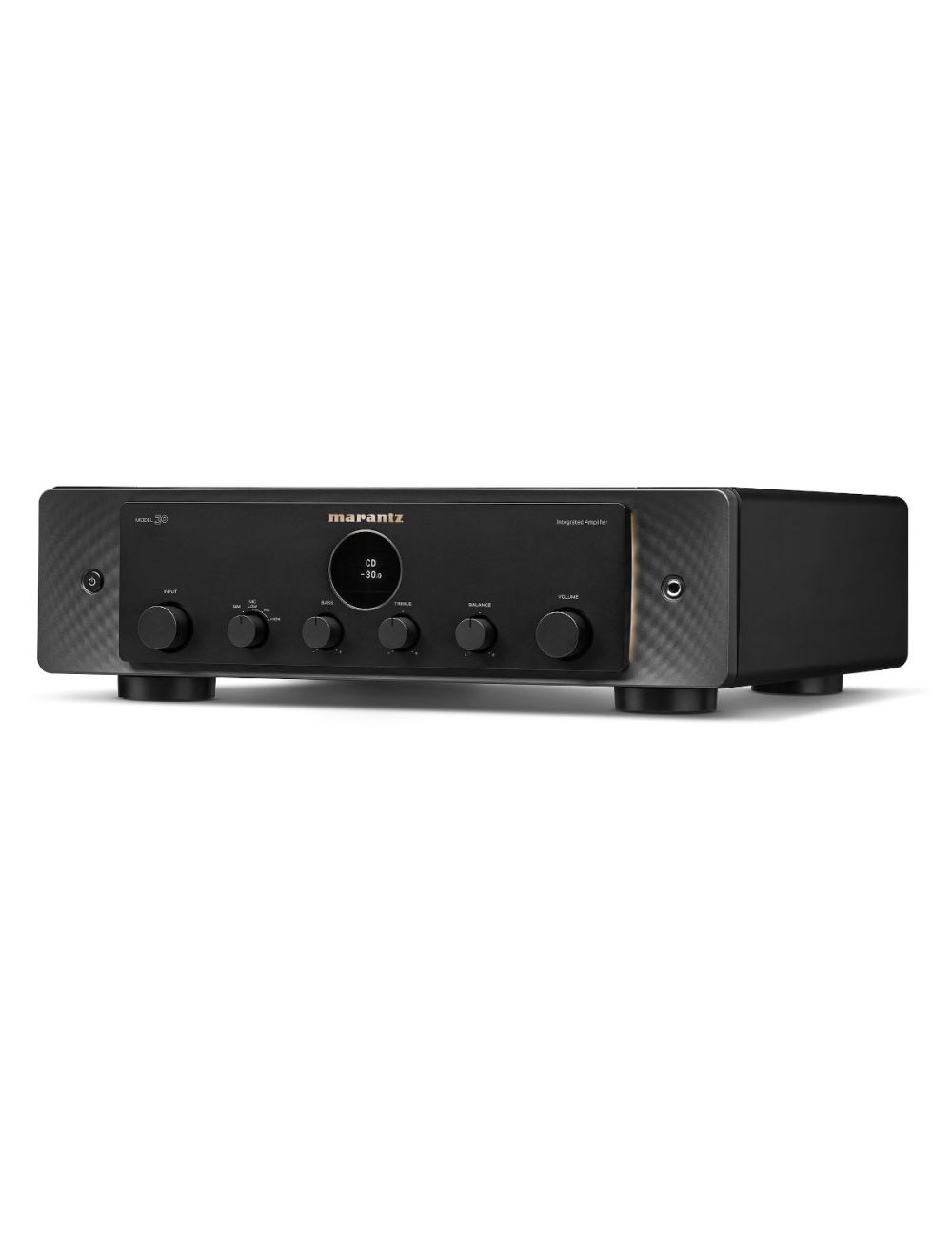

Marantz Model 30
Stereoreceiver med 2x100W i 8 Ohm med rikligt många analoga ingångar med hög standard.
Exquisite sound tuning
MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design.
The most musical, accurate, detailed sound
MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM.
LEARN MORE
Marantz Musical Premium Phono EQ
Envisioned to deliver optimal sound quality by simplifying the signal path – vital given the delicate nature of phono signals – the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.
LEARN MORE
MC / MM phono input impedance selector
In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector.
LEARN MORE
Built for Generations

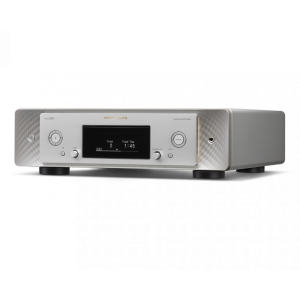

Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards.
LEARN MORE
More Than 65 Years of Audiophile Heritage
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world.
LEARN MORE
Output Power
| Rated Output Power | 100W + 100W (8ohm) 200W + 200W (4ohm) |
| JEITA Power output | - |
Features
| Amplifier Circuit | Switching Amp (Hypex NC500/SMPS600 by single) |
| Power Trans | Toroidal w/case |
| Volume | Electric |
| Loudness | - |
| Bass / Treble / Mid / Balance Control | yes / yes / - / yes |
| REC Out Select | - |
| Source Direct | yes |
| Pure Direct | - |
| (Marantz) Purest Mode | - |
| Isolator (for USB-B input) | - |
| Jitter reducer | - |
| Dual Clock: 44.1 / 48 kHz | - |
| Digital Filter | - |
| Analog Amp Mode | - |
| Wide Range | 5Hz - 50kHz |
| Total Harmonic Distortion | 0.005% (1kHz, 8Ω) |
| Damping Factor | 500 |
| Input Sensitivity: Phono input | MM: 2.3 mV / 39 kohm MC: 250 |
| Input Sensitivity: CD/LINE/RECORDER | 220 mV / 13 kohm |
| Input Sensitivity: Power Amp input | 1.1 V / 13 kohm |
| SN Ratio | PHONO (MM): 88dB PHONO (MC): 75dB CD: 107dB |
Terminal
| Phono Input | yes (MM/MC) Marantz Musical Premium Phono EQ |
| Ext. Pre Input (Power Amp Direct) | yes |
| Preout | yes |
| Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out | 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER) * [PHONO] and [CD] inputs = high grade terminals. |
| Balanced XLR input | - |
| Rec-Out Selector | - |
| Optical input | - |
| Coaxial input | - |
| USB A | - |
| USB B | - |
| HDMI | - |
| DAC | - |
| 2 sets of Spk Terminal | - |
| Speaker Terminal | Marantz Original SPKT-100+ |
| Remote Control Bus Terminal | yes (Cinch) |
| NFC | - |
| Ethernet | - |
Network
| Engine | - |
| Computer music file streaming | - |
| Gapless Playback Music ServerUSB A | - |
| Internet radio | - |
| AirPlay 2 | - |
| GoogleCast | - |
| Album art browsing | - |
| Jpeg Picture Playback | - |
| Cloud Music Service | - |
| Wi-Fi | |
| WPS (Wi-Fi Protected Setup) | - |
| Wi-Fi Sharing | - |
| WMM | - |
| OFF mode | - |
| Bluetooth | |
| OFF mode | - |
| Multi-Poimt | - |
UI
| Display | yes (Porthole, OLED) |
CONTROL
| App Control via Network Player | yes |
| System Remote Controller | yes (New system remote controller to control SACD 30 and MODEL 30) |
| RS232C | - |
| Flasher Input | - |
| Trigger 12V | - |
| TV Auto-play (Opt/Coax digital-in sensor) | - |
Others
| Unit (W x H x D mm) | 443 x 130 x 432 |
| Packaging Dimensions (W x H x D mm) | 534 x 255 x 522 |
| Net weight | 14.8kg |
| Packaging gross weight | 17.6kg |
| Power Consumption | 130W |
| at Standby | 0.2W |
| at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB) | - |
| AC Inlet | yes |
| AC Outlet | - |
| Owner's Manual | Web Manual |
| Quick Start Guide | Paper |
| Chassis Material | SECC |
| Chassis Layer | Triple |
| Foot | New |
Cosmetic
| Panel Color | SG / BK |
| Front Center Panel | Aluminum |
| Back-shell | - |
| Side cover | Aluminum |
| Top cover | Steel |
| Edge-lighting | yes (Dimmer) |
| Volume Knob | Aluminum |
| Input Selector | Aluminum |
| Bass/Treble/Balance/ REC Out Sel knobs | REC Out-->PHONO (Aluminum) |
| Speaker A/B button | - |
| Power button | Aluminum |
| Other knob/button (LOUDNESS, SOURCE DIRECT etc) | - |
| Side screw | Copper plated |
| SKU | Marantz Model 30 |
|---|---|
| Märke | Marantz |
| Weight | 8.000000 |
