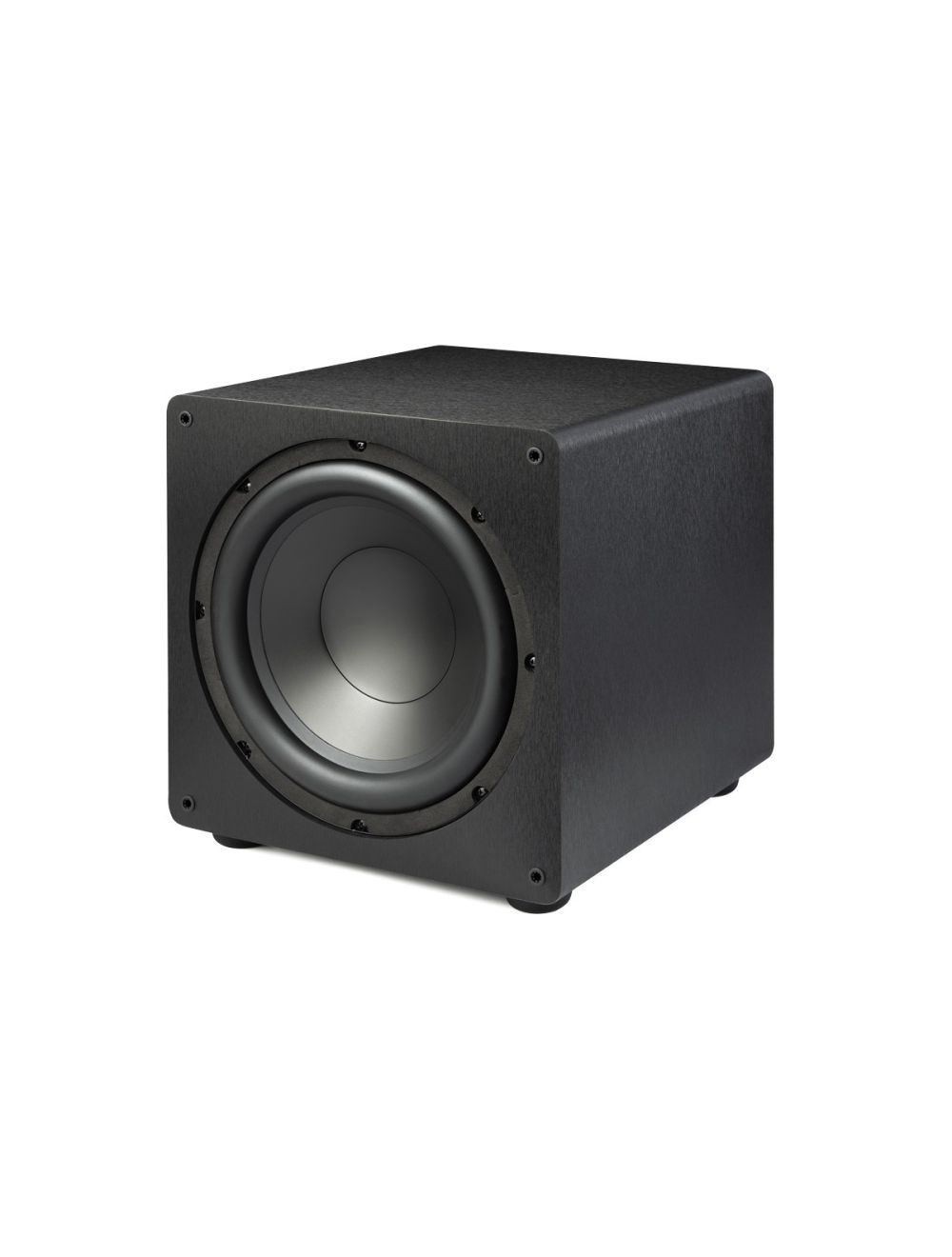

Paradigm Essentials Sub 12

SPECIFICATIONS
DESIGN
12” (305 mm) high-excursion driver, sealed MDF cabinet with reinforced woofer baffle, and Class-D amplifier compatible with an optional wireless subwoofer kit
AMPLIFIER
Note: Power measurements underway to ensure compliance with new FTC regulations. Class-D Amplifier with 700W peak (350W continuous)
AMPLIFIER FEATURES
56-bit high-resolution DSP engine with Auto-On / Off and improved soft-clipping circuitry
ROOM CORRECTION
N/A
FREQUENCY RESPONSE ON-AXIS
±3 dB from 19Hz – 200Hz
LOW FREQUENCY DRIVER
12” (305 mm) high-excursion carbon-loaded polypropylene cone housed in a stamped steel basket
LOW FREQUENCY EXTENSION
17 Hz (DIN)
LOW PASS FILTER FREQUENCY
Variable 40Hz - 120Hz (Bypass)
SUB / SAT PHASE ALIGNMENT
0° - 180° Control Panel
INPUTS
Line Level: (2) RCA Left, Right/LFE
COMPATIBLE PRODUCTS
Subwoofer Wireless Kit, sold separately
POWER DRAW
Max: 350W Standby: 0.5W
DIMENSIONS HXWXD
14.77" x 14.01" x 15.61" (37.5 cm x 35.6 cm x 39.6 cm)
WEIGHT
29.1 lbs (13.19 kg)
FINISHES
Brushed black vinyl
