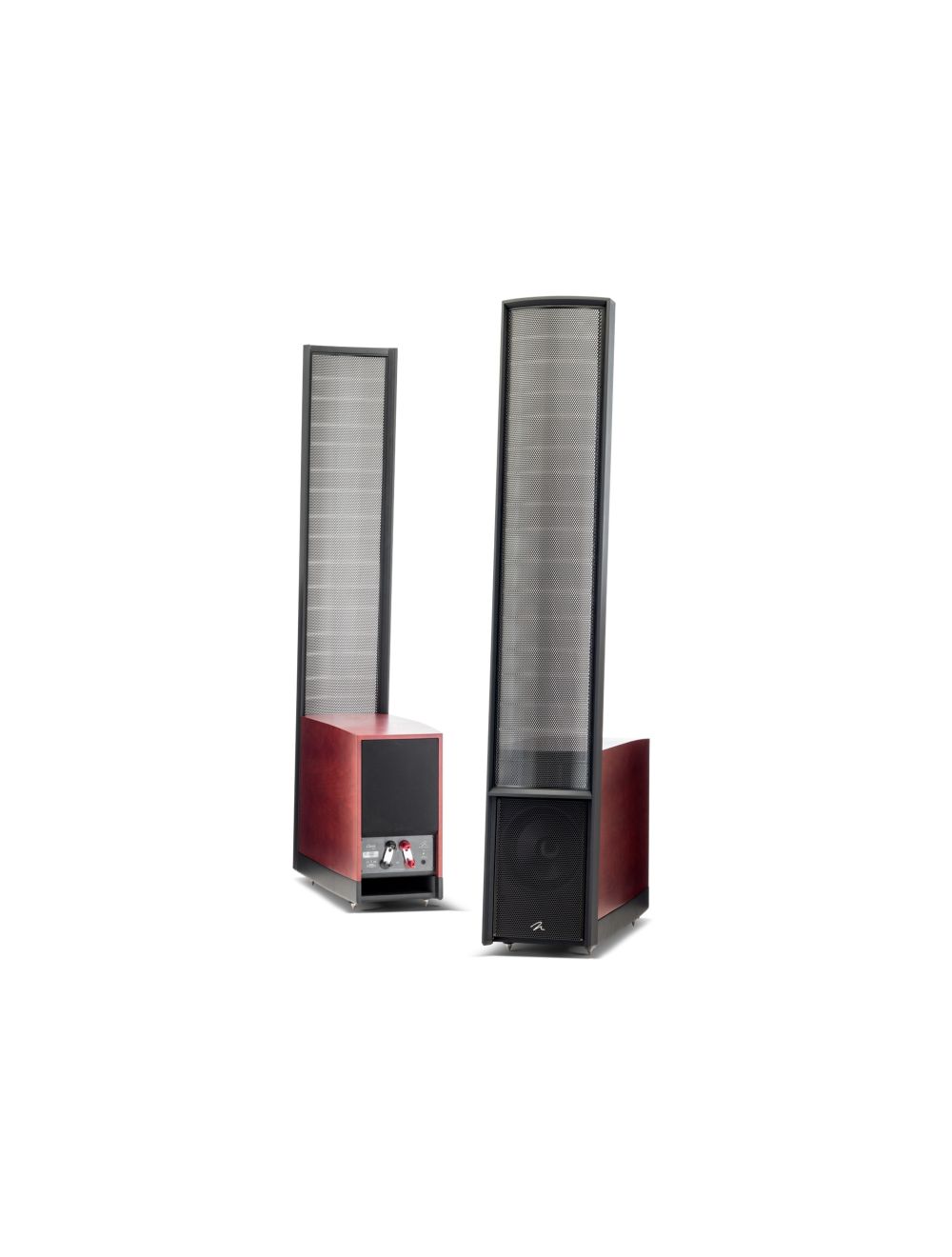

Martin Logan Classic ESL 9
Den minsta högtalaren i Martin Logans Masterpiece-serie som ger riktigt detaljerat och rikt ljud. Riktigt häftiga!
Classic ESL 9 består av en 9.2-tum Curvilinear Line Source (CLS™) XStat™ elektrostatpanel med avancerad MicroPerf™ stator teknik och extra stabil AirFrame™Blade konstruktion som innebär att själva stommen är riktigt stabil.
Basdelen använder två nyutvecklade 8 tums aluminumbasar med extra låg distorsion, balanserade mitt emot varandra. - En framåt och en bakåt. Detta minskar kabinettvibrationer speciellt mellan 34Hz till 100Hz resulterande i realistiska baseffekter man kan känna. Biwire/biamp möjlighet.
|
Frequency Response |
34–23,000 Hz ±3dB |
|
Horizontal Dispersion |
30° |
|
Vertical Dispersion |
44" (112cm) line source |
|
High Frequency Transducer |
XStat™ CLS™ electrostatic transducer |
|
Panel Dimensions |
44" × 9.2" (112 × 23cm) |
|
Radiating Area |
405 in2 (2,576 cm2) |
|
Low Frequency Transducer |
Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone woofers with extended throw drive assembly, non-resonance asymmetrical chamber format |
|
Sensitivity |
90 dB/2.83 volts/meter |
|
Impedance |
4 Ohms, 0.8 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Recommended Amplifier Power |
20‒400 watts per channel |
|
Crossover Frequency |
380Hz |
|
Components |
Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors |
|
Signal Inputs |
Custom 5-way bi-wire tool-less binding posts |
|
Power Draw |
Max: 2W per channel Standby: <1W per channel |
|
Weight |
78 lbs. (35.4 kg) |
|
Dimensions |
59.8" × 10.4" × 25.4" |
|
Specifications are subject to change without notice. |
